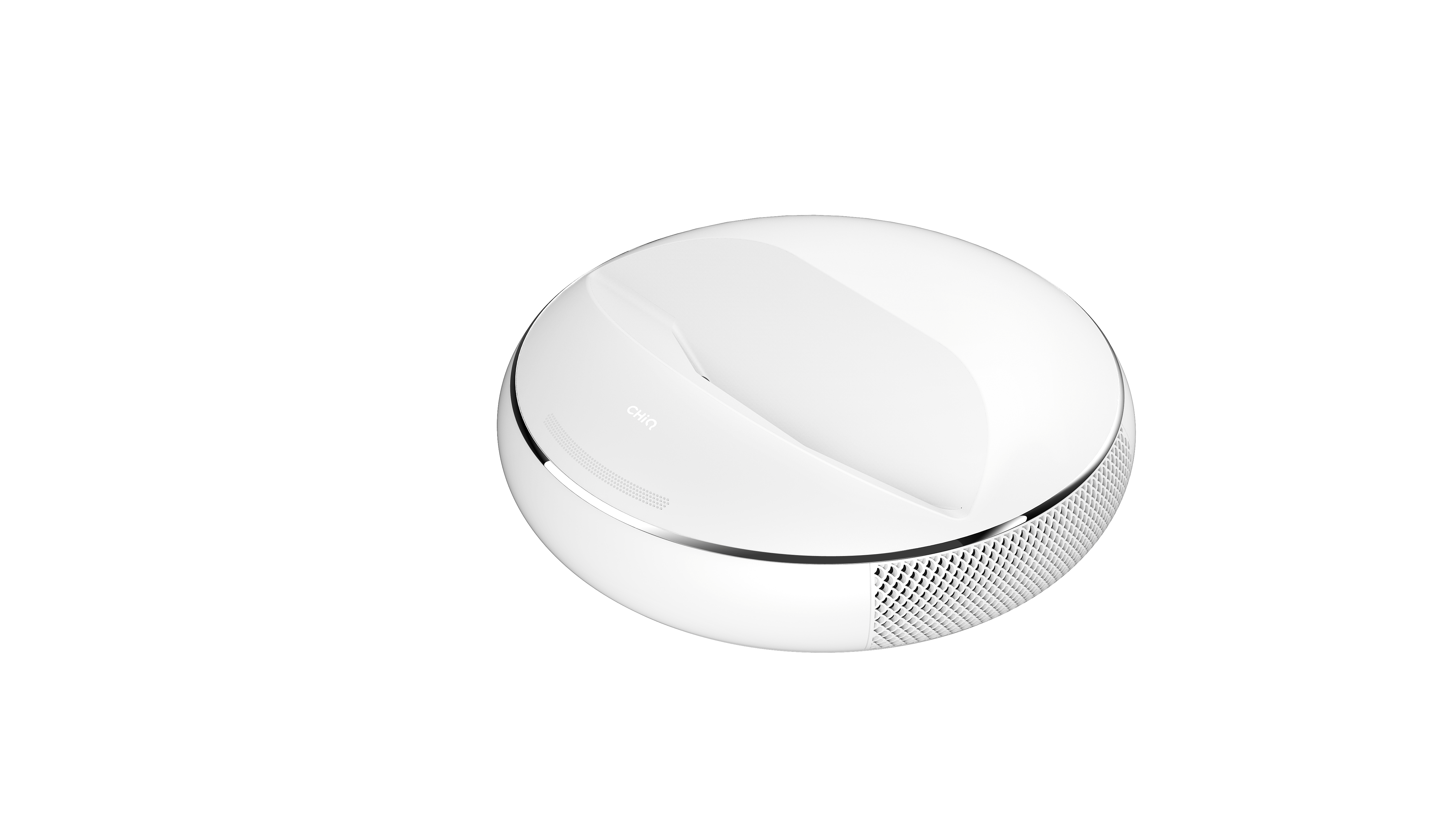

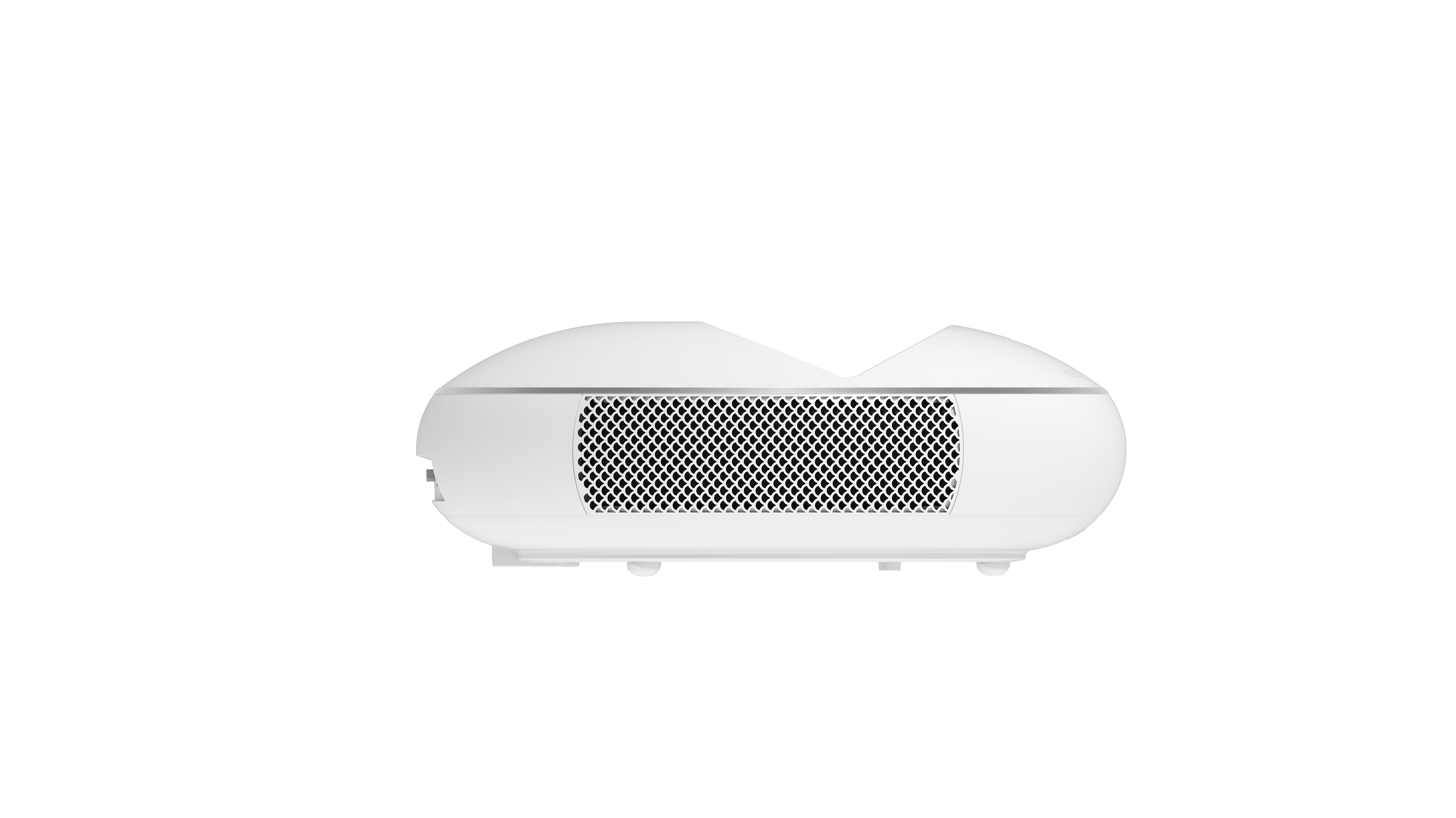

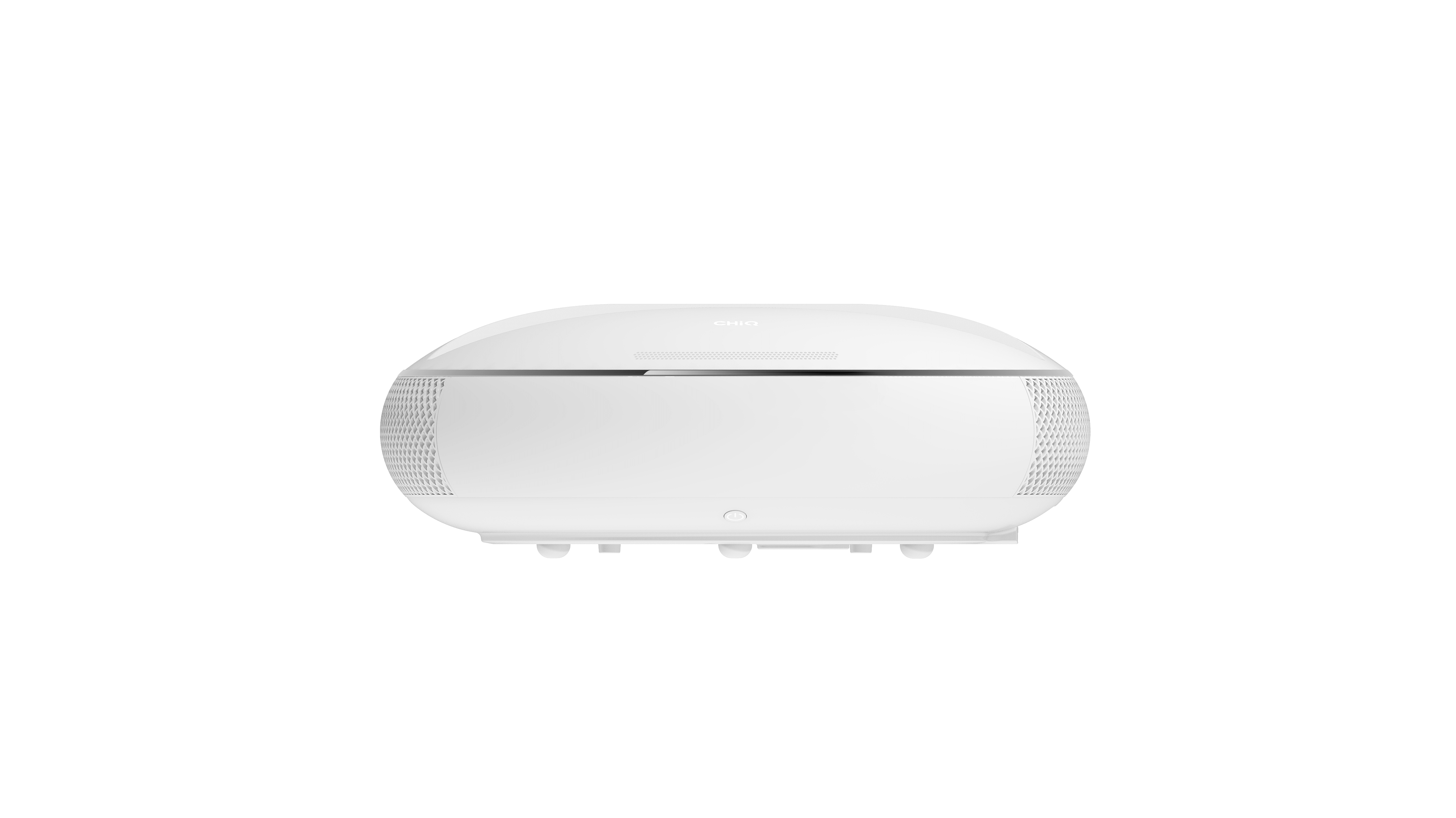

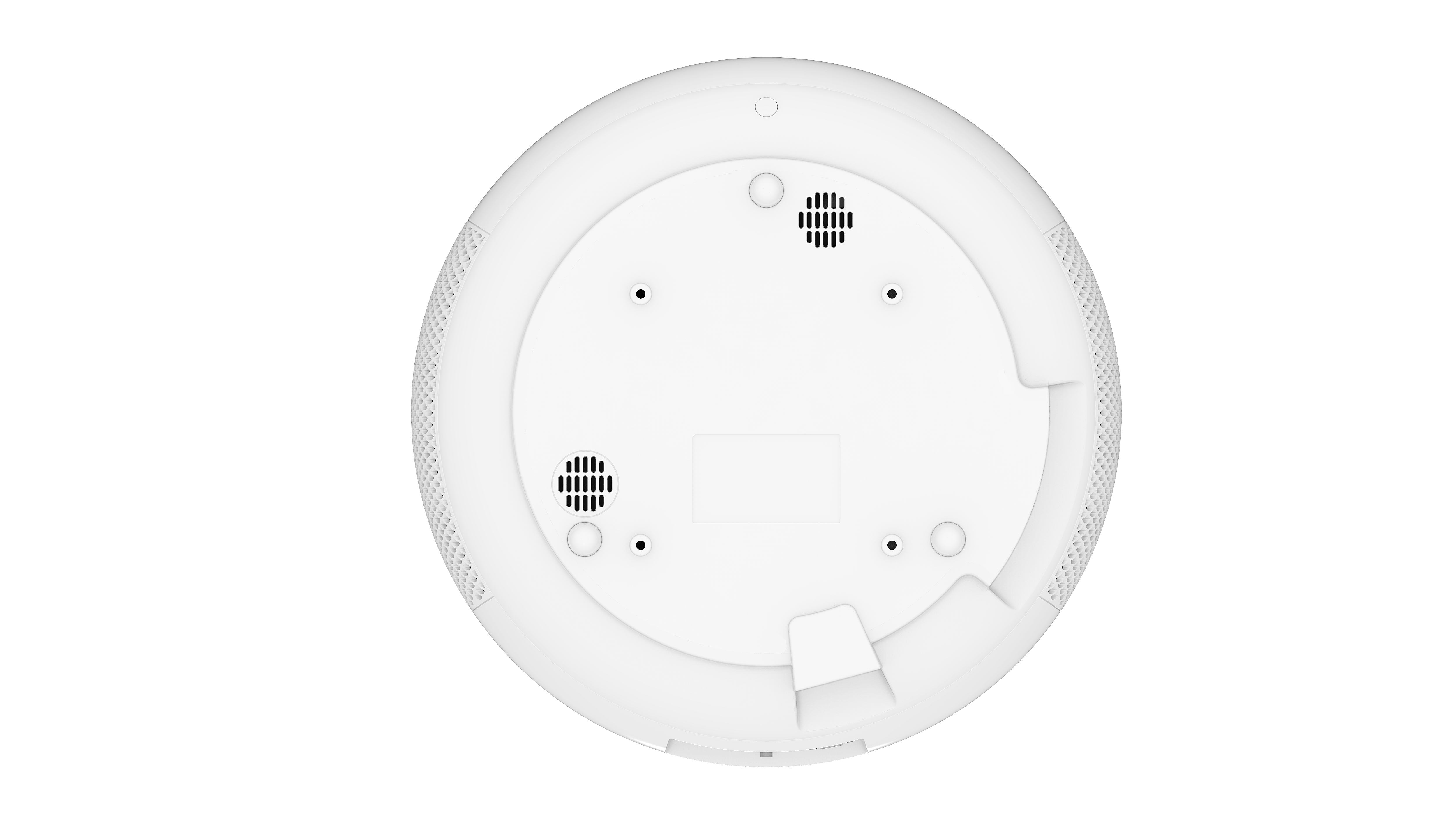

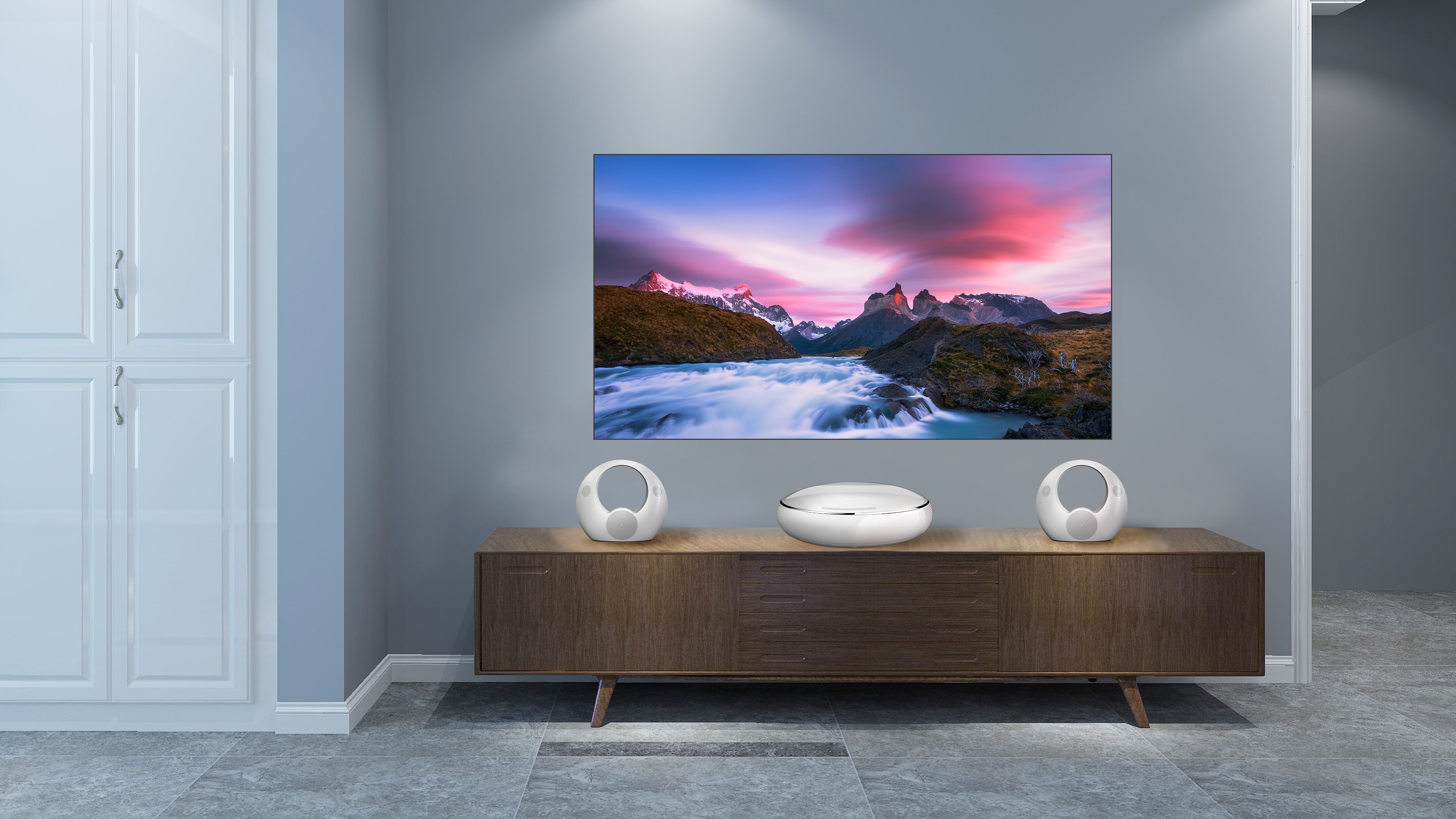

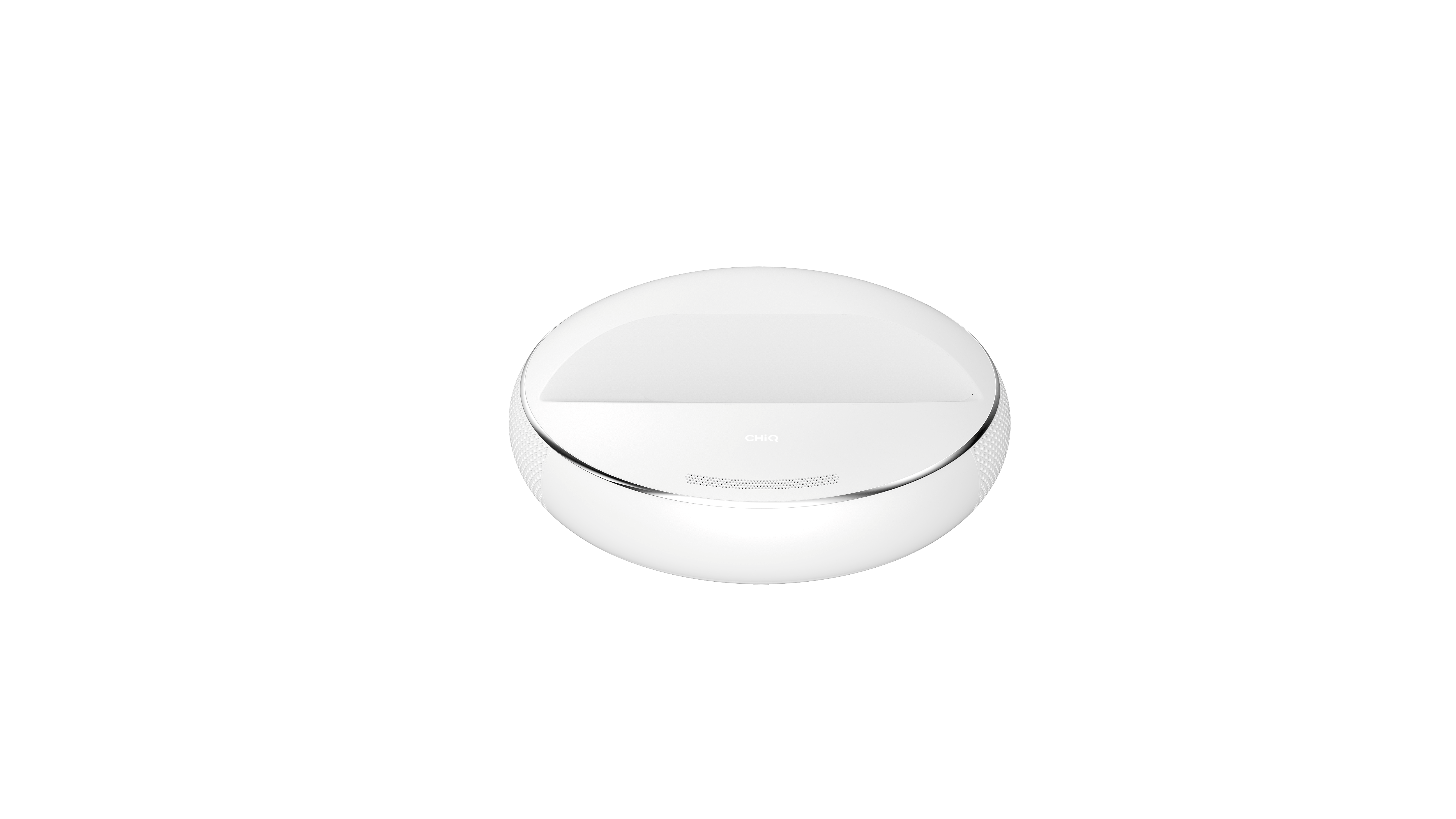

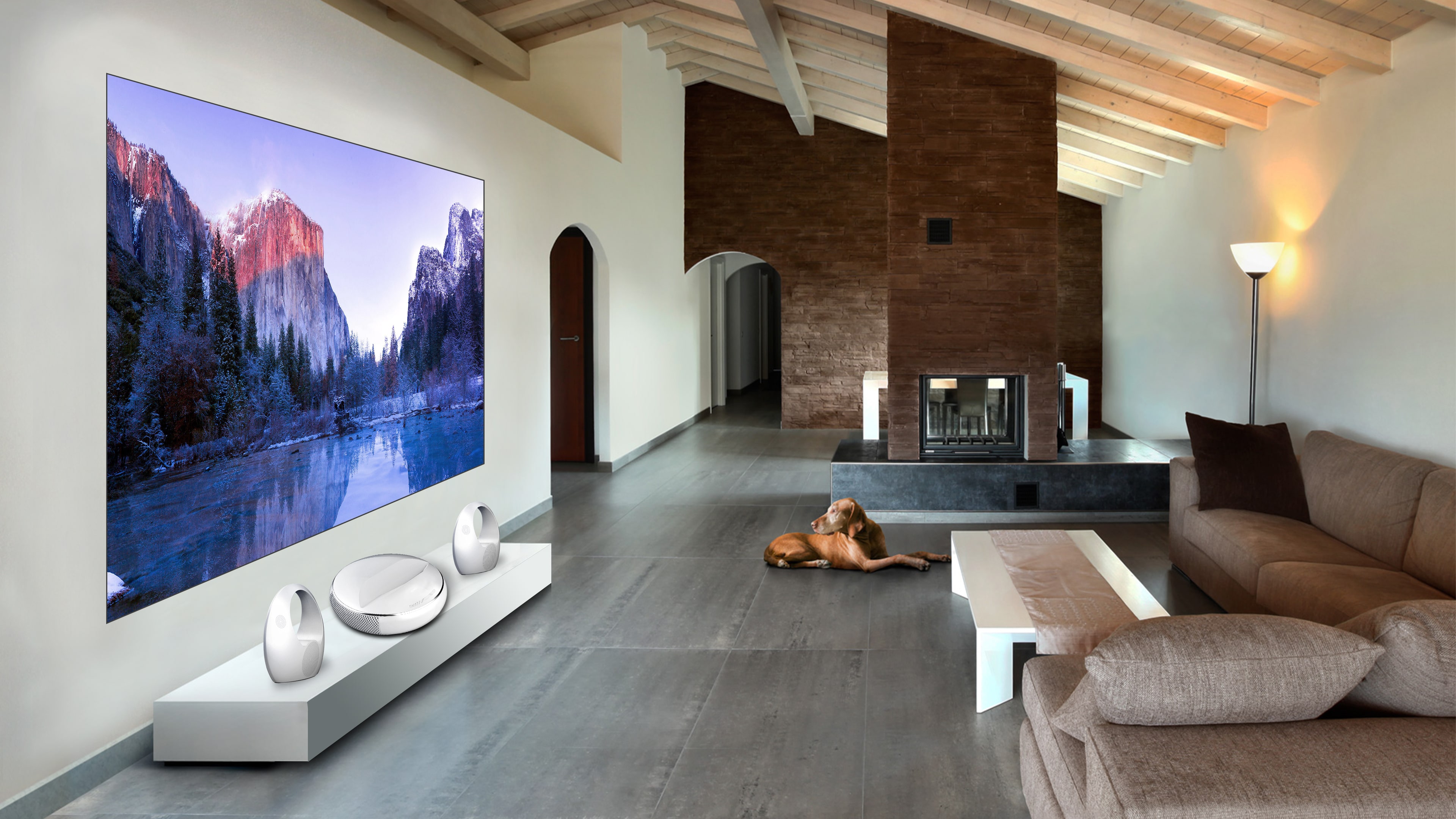

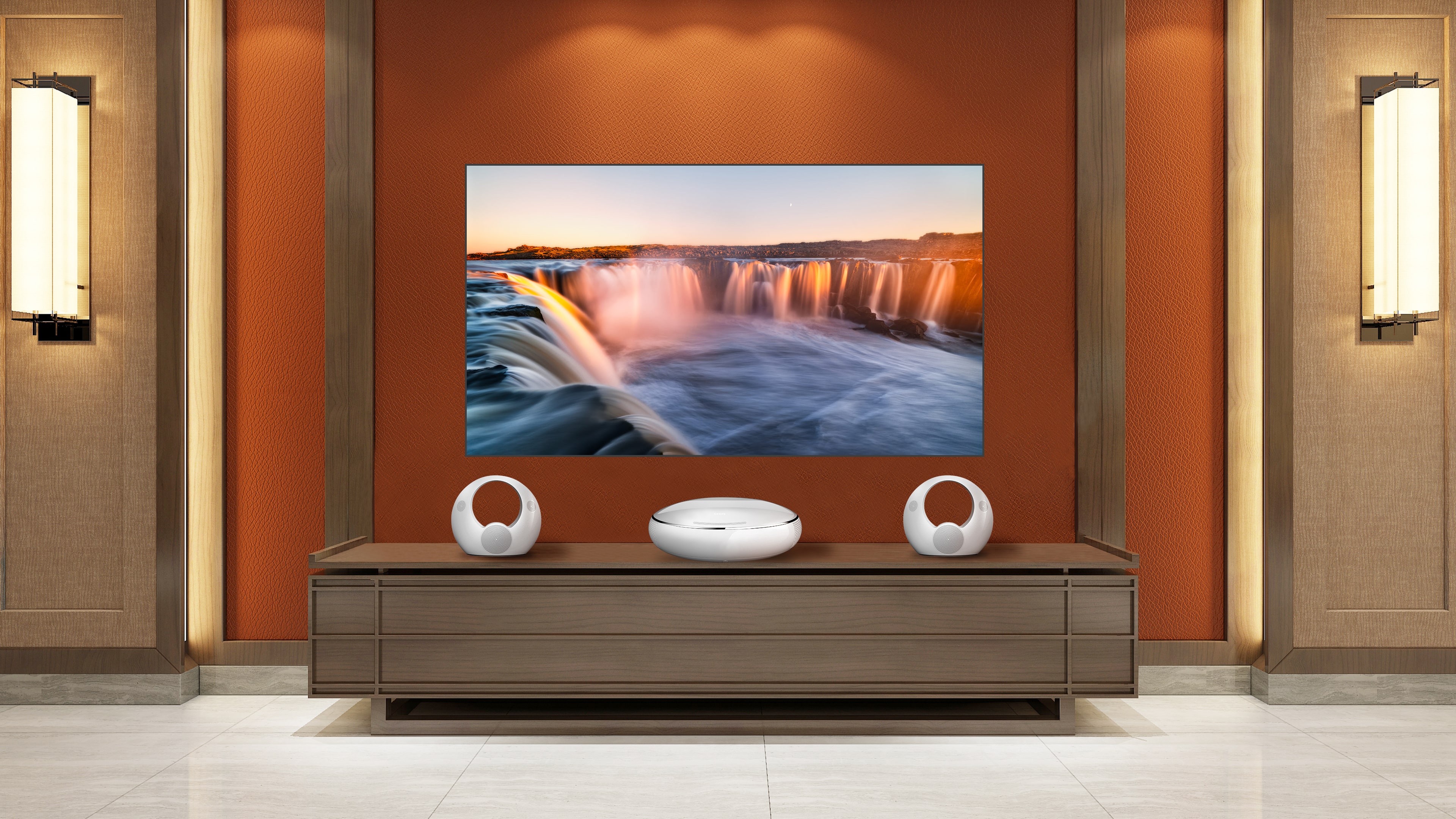

Premium 4K Laser Theater CHiQ A5U

With 2500ANSI Lumens, 1500:1 Contrast and 4K resolution, A5U delivers a premium 4K theater experience right at your home.

2500 ANSI Lumens - Never Overstated

Brightness matters! At CHiQ, we never overstated the brightness of our projectors. A5U is certainly the brightest UST in its range. 2500 ANSI lumens allows you to enjoy stunning images even in daylight without much compromise.

The Power of 4K

4K resolution is an incredible improvement over standard high definition. For a 16:9 ratio, 4K (3840 x 2160) contains almost four times the pixels of HD. This means a clearer more detailed image. The higher pixel count also allows for closer viewing by the audience without loss in quality of the content on the screen.

1500:1 Contrast Ratio

A5U boasts 1500:1 contrast ratio which means it is capable of producing the white image 1500 times brighter than the black image. See the true darkness and get more details revealed with the CHiQ A5U.

Let the True Colours Shine

A5U fully supports HDR, 3D DNR (Digital Noise Reduction) and MEMC (Motion Estimation/Motion Compensation), working with its >130% NTSC color gamut, vivid, lifelike UHD images with high colour accuracy are guaranteed.

Specifications

Optical Parameters Sound Parameters
Light Source: Laser Audio Decoding: MPEG1/2, Layer1/2, Mp3,
Display: DLP (digital lighting process) Dolby(AC-3), AAC, HE-AAC
DMD Chip: ECD S410 0.47” 4K Built-in Speaker: 5W*1
Color Gamut: 130% External Speakers: 20W*2
Display Size: 100" (80-150" adjustable)
Throw Ration: 0.21 Interface

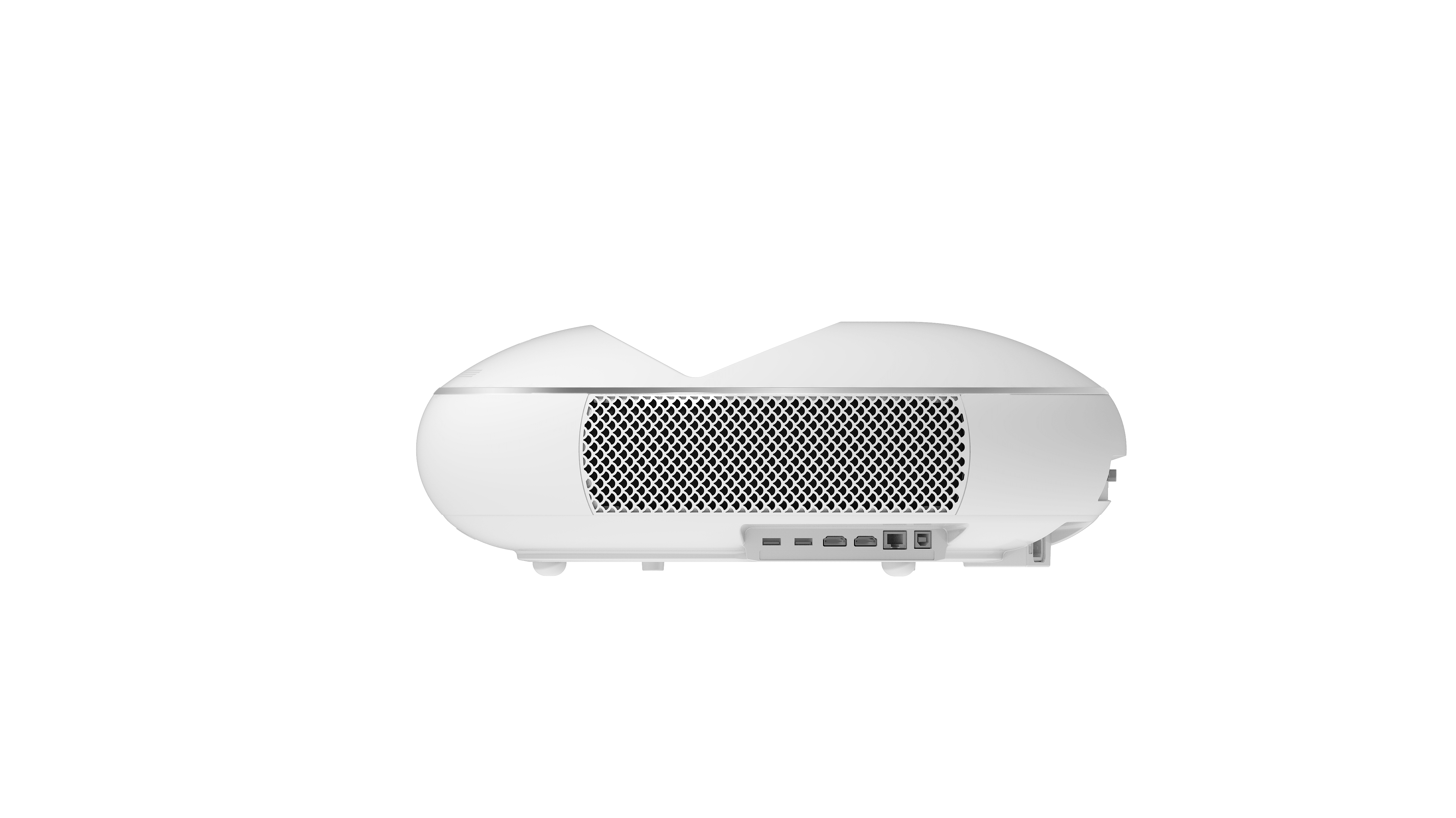

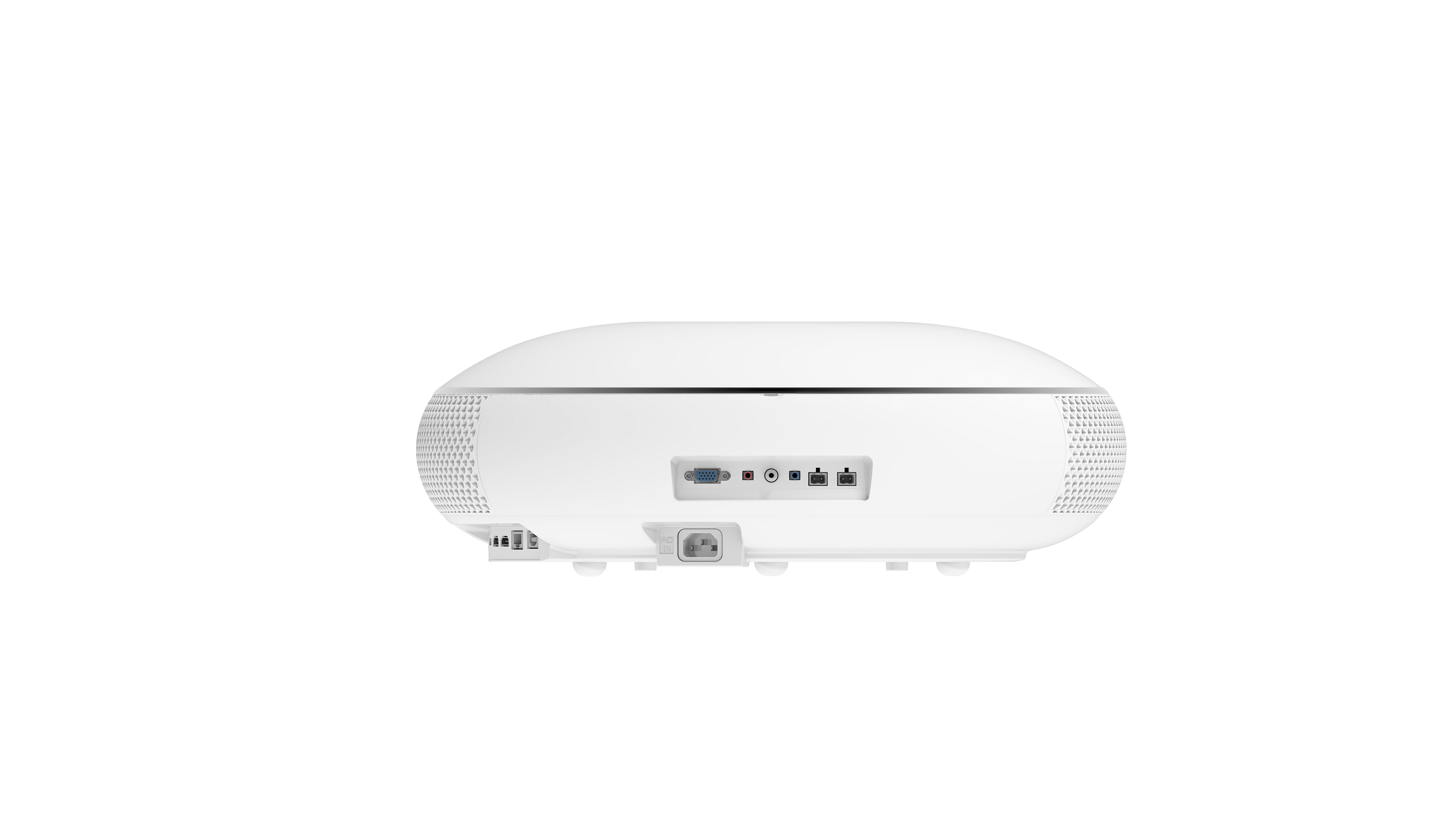

Brightness:2500ANSI Lumens Input: USB2.0*2, HDMI2.0*2, VGA, VGA audio input(L/R, φ3.5mm), Rj45, Factory Testing Port
Resolution: 3840 x 2160 Output: Digital audio output (coaxial),
Contrast: 15000:1 Audio output(L/R, φ3.5mm), Passive audio R/L
Light Source lifetime: 25000 hours
  Internet
Electrical Parameters Connectivity: Wireless + cable
Voltage: 100-240V 50/60Hz
Power Consumption: 310W (W/O audio) Interactive Device
Standby Power Consumption: 0.5W WiFi: IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz Dual Band
Noise: 33dB(A) 2m Multi-Screen Interaction: Supported
  Bluetooth: Supported
System Parameters DLAN: Supported
Operating System: Android
CPU: Cortex 73/Duo-Core+Cortex 53/Duo-Core (1.7GHz) Others
GPU: Mail-G51/Duo-core Color: White
RAM: 3GB DDR3 Material: PC+ABS
Storage: 64GB EMMC Size: φ480*171.5mm
Refresh Frequency: 60Hz Net Weight: Appox. 9.3Kg
  Projection Mode: Front Desk, Rear Desk, Front/Ceiling Mounted, Rear/Ceiling Mounted
Image Quality Focusing: Motor Focusing
Motion Compensation: 4K 60HZ MEMC
Video Decoding(USB Support): MPEG2, MPEG4, H.264/H.265, RM/RMVB etc. Package
H.265/VP9 Decoding: Support Package Size: 640*580*410mm
Picture Format(USB Support): JPG, PNG, BMP etc. Gross Weight: 16.5Kg
DNR: Supported List of Items: Laser Projector(1 pcs), Manual(1 pcs), Power Cord(1 pcs), Audio(1 pair), HDMI cable(1 pcs), Remote Control(1 pcs), Screw(4 pcs),
HDR: Supported
