E5F36 FHD UST Laser Projector

With the DLP DMD 0.6" chip set, 3600 ANSI lumens brightness and 1920x1080 FHD resolution, E5F36 is an ideal projector for classroom, meeting room and other small-medium size spaces where high definition and ultra bright images are required.

E5F36 is the most welcomed and best selling projector in Changhong Laser Display  product range for education and business sectors.

Super Bright FHD Image

Brightness is critical for education and business projectors. E5F36 boasts 3,600 ANSI lumens which is more than enough for offices/classrooms.

The native FHD 1920x1080 resolution of E5F36 make it capable to display a clear images to meet modern business demands.

Long-Lasting and Maintenance-Free

E5F36 is powered by the long-lasting, low maintenance laser light source which gunratees a long-lasting lifespan (25,000 hours) and it is maintenance-free, there is no lamp to be replaced which helps to reduce your running cost in long term.

Also, as it is powered by laser, it does not slowly fail the way as lamps do, so you can expect consistent image brightness throughout the laser light source’s 25,000 hours recommended lifespan.

0.23 Throw Ratio

Space is precious for offices and classrooms. With an ultra short throw ratio of 0.23, E5F36 projects 100" FHD image just 22.6cm away from the screen, there will be no more interuptions to your presentation when someone walking in front of the projector.

Ready for Integration

E5F36 offers full range of connection ports for integration in modern AV environments with leading control, monitoring and management systems at all difference levels.

The following ports are avalible on E5F36: HDMI*2, USB 2.0*1, RJ45*1, VGA IN(Computer/D-sub)*2, AVInput*1,VGA Audio input*1, VGA OUT *1 (combine with VGA2 IN), Anolog audio output*1, digital audio*1, RS232*1 and factory service interface*1.



35000:1 Contrast Ratio

With its 35000:1 contrast ratio, E5F36 display crisp and clear images where white is brighter and black is darker with rich details.

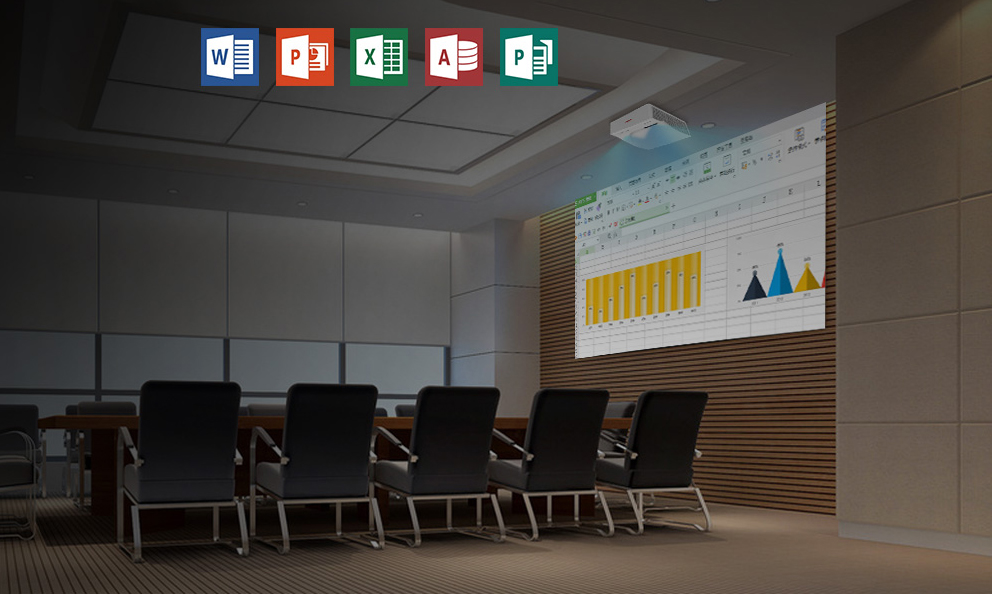

Built-in Media Player

With the built-in media player, media and document files stored on external USB storage can be played directly from the projector without the need for a PC which helps to make the life easier for meetings/presentations.

Specification

Optical ParametersChipsetDLP DMD,0.65”
Resolution1920X1080(FHD)
Aspect ratio16:9 support 16:10 / 16:6 / 4:3 display
Luminous Flux3600lm
Contrast Ratio35000:1
Projection RatioTR0.233
Projection ModelInternal Reflection
Display Size80" - 135"
Illumination Uniformity0.9
Light source technologyNew solid state laser source technology
Light source lifetime2,5000 Hours(Normal)
Electrical ParametersRated Power298W
Standby Power≤0.5W
Noise33dB
Power VoltageAC 110 to 240V, 50/60 Hz
System
Parameters
Operation SystemAndroid
Flash4GB
Interface ParametersInputHDMI*2, USB 2.0*1,RJ45*1, VGA IN(Computer/D-sub)*2,
AV Input*1,VGA Audio input*1
OutputVGA OUT *1 (combine with VGA2 IN),
Anolog audio output*1, digital audio*1
Contral portRS232*1, Debug interface*1
Functional ParametersInternal Speaker1X10W
Blue tooth 4.0Support
Remote ControlInfrared
Network SupportRJ45 cable
Keystone correctionVertical ±40°
Focusing FunctionElectric Focusing
Dust-proof designHoneycomb Dust-proof Filtering Function
Other FunctionMedia Share, Local Picture Browsing, Music and Video Playing,
Super Video Decoding, Multi-Sound Mode
Package Size485*485*350mm
Weight (including packing)10.5Kg
Dimensions381mm * 382mm *  147mm
Net weight8Kg
Projection modelDesktop front projection, desktop rear projection, hoisting front
projection, hoisting rear projection
Working / storage environmentTemperature 5℃ ~38℃ ~humidity 35%~85%
