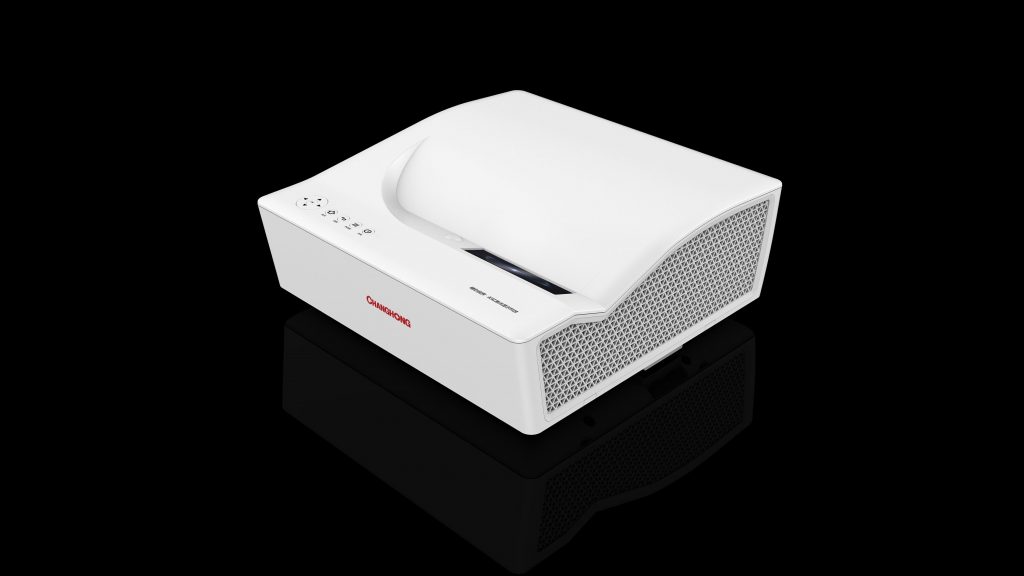

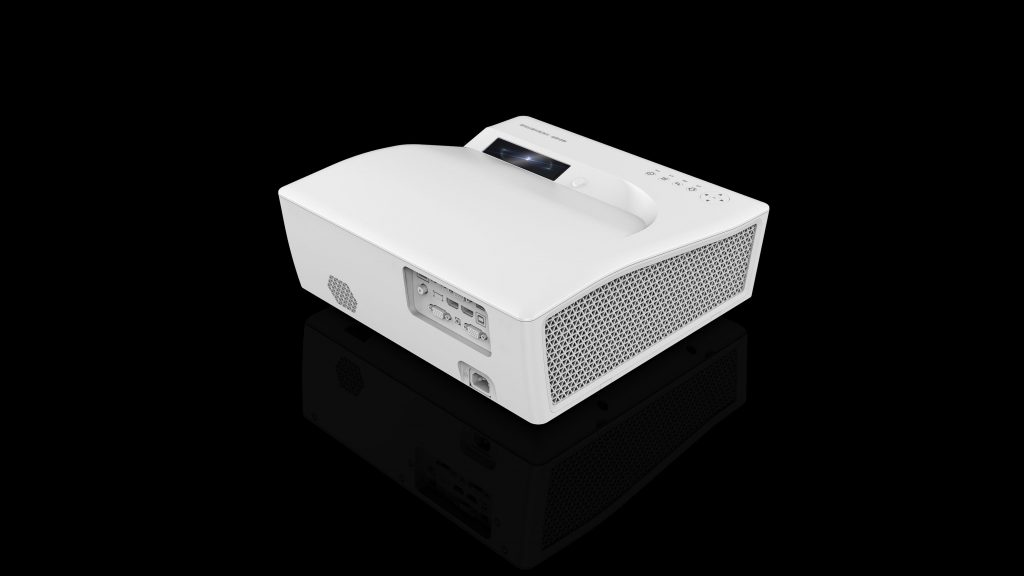

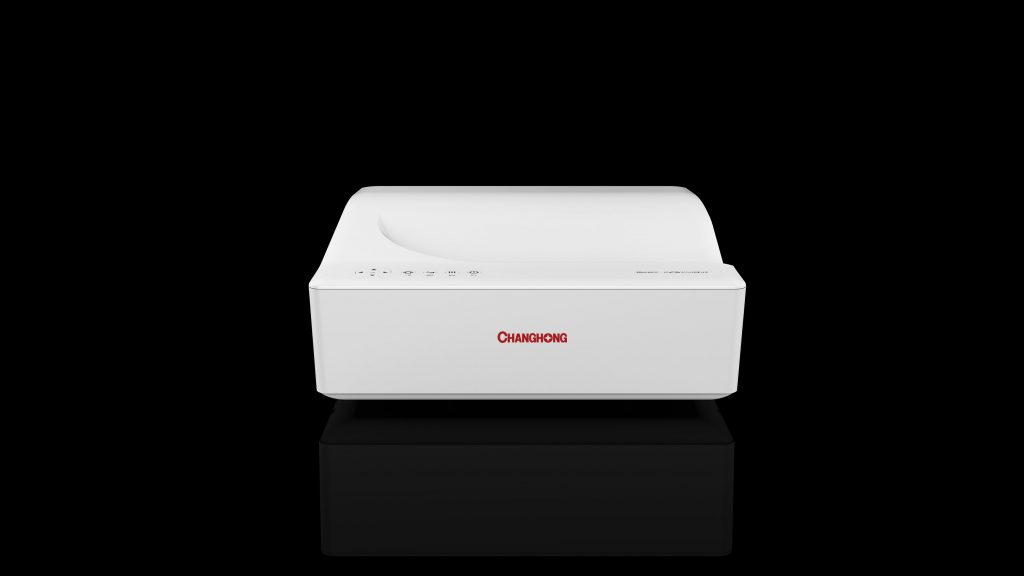

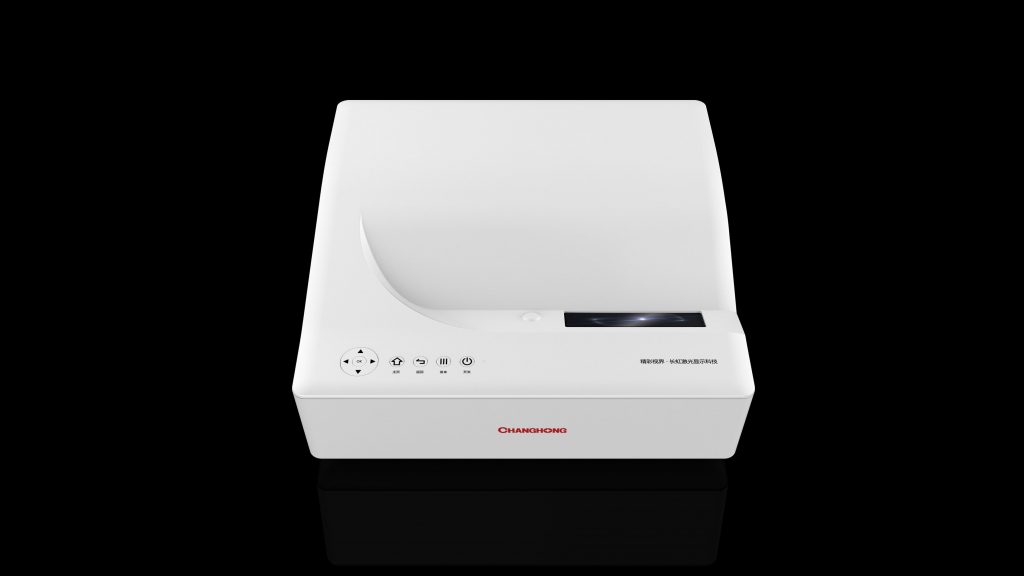

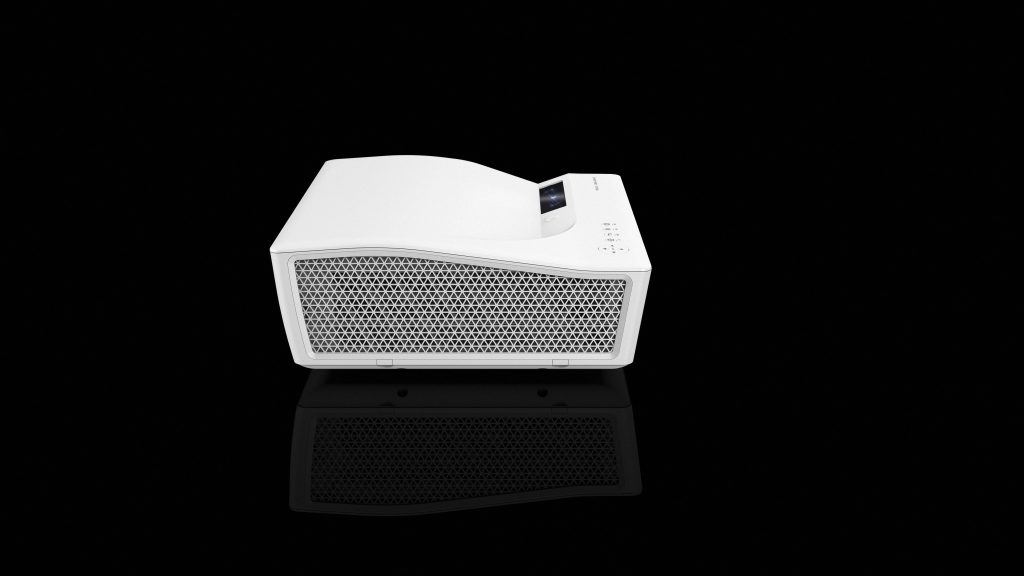

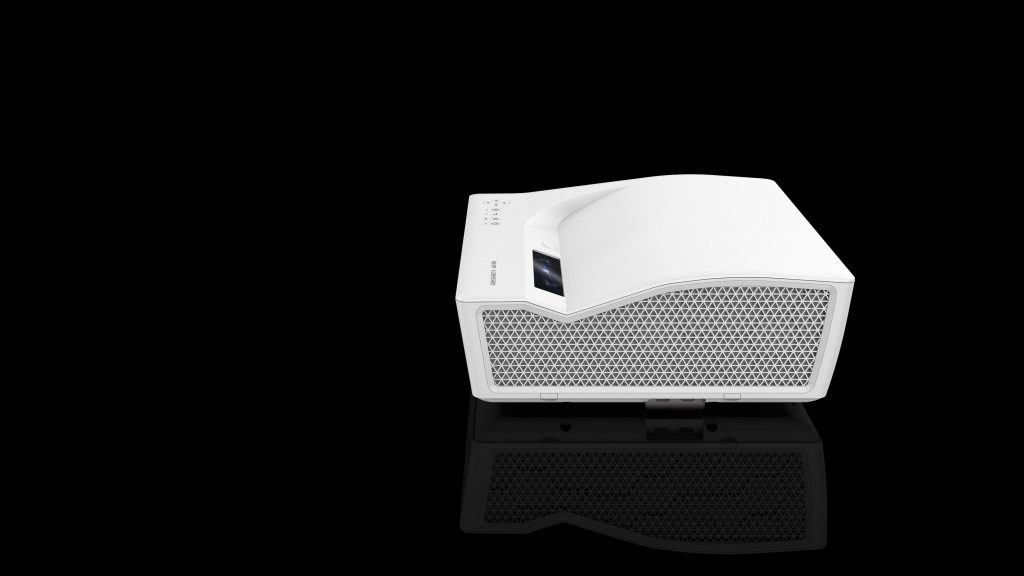

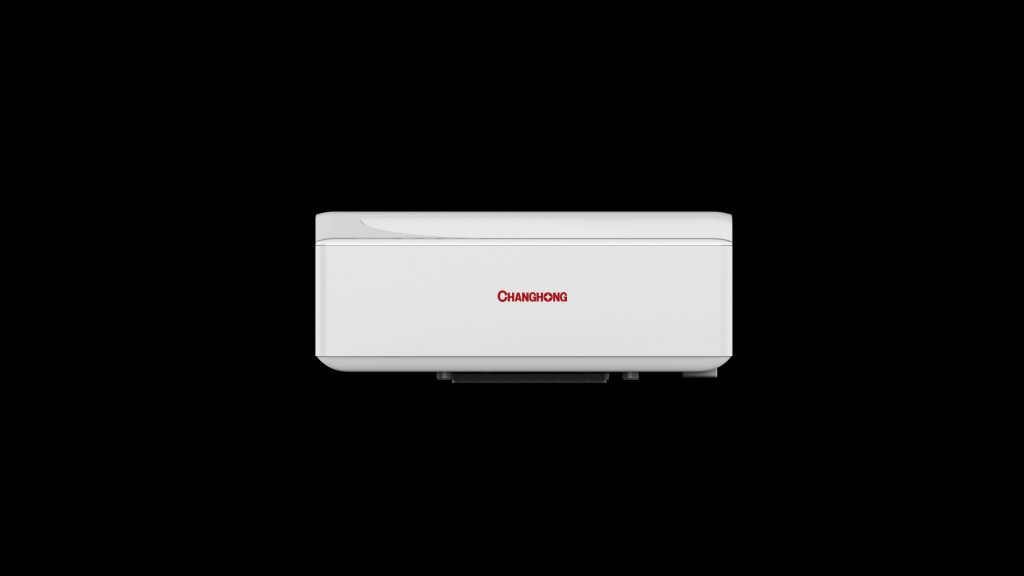

E5W36 WXGA UST Laser Projector

With the DLP DMD 0.65" chip set, 3600 ANSI lumens brightness and 1280x800 WXGA resolution, E5W36 is an ideal projector for classroom, meeting room and other small-medium size spaces where high definition and ultra bright images are required.

Super Bright 3600 Lumens

Brightness is critical for education and business projectors. E5W36 boasts 3,600 ANSI lumens which is more than enough for offices/classrooms.

The native WXGA 1280x800 resolution of E5W36 offers adequate image quality for most business/education application scenarios.

Long-Lasting and Maintenance-Free

E5W36 is powered by the long-lasting, low maintenance laser light source which guarantees a long-lasting lifespan (25,000 hours) and it is maintenance-free, there is no lamp to be replaced which helps to reduce your running cost in long-term.

Also, as it is powered by laser, it does not slowly fail the way as lamps do, so you can expect consistent image brightness throughout the laser light source’s 25,000 hours recommended lifespan.

0.233 Throw Ratio

Space is precious for offices and classrooms. With an ultra short throw ratio of 0.233, E5W36 projects 100" FHD image just 21.2cm away from the screen, there will be no more interruptions to your presentation when someone walking in front of the projector.

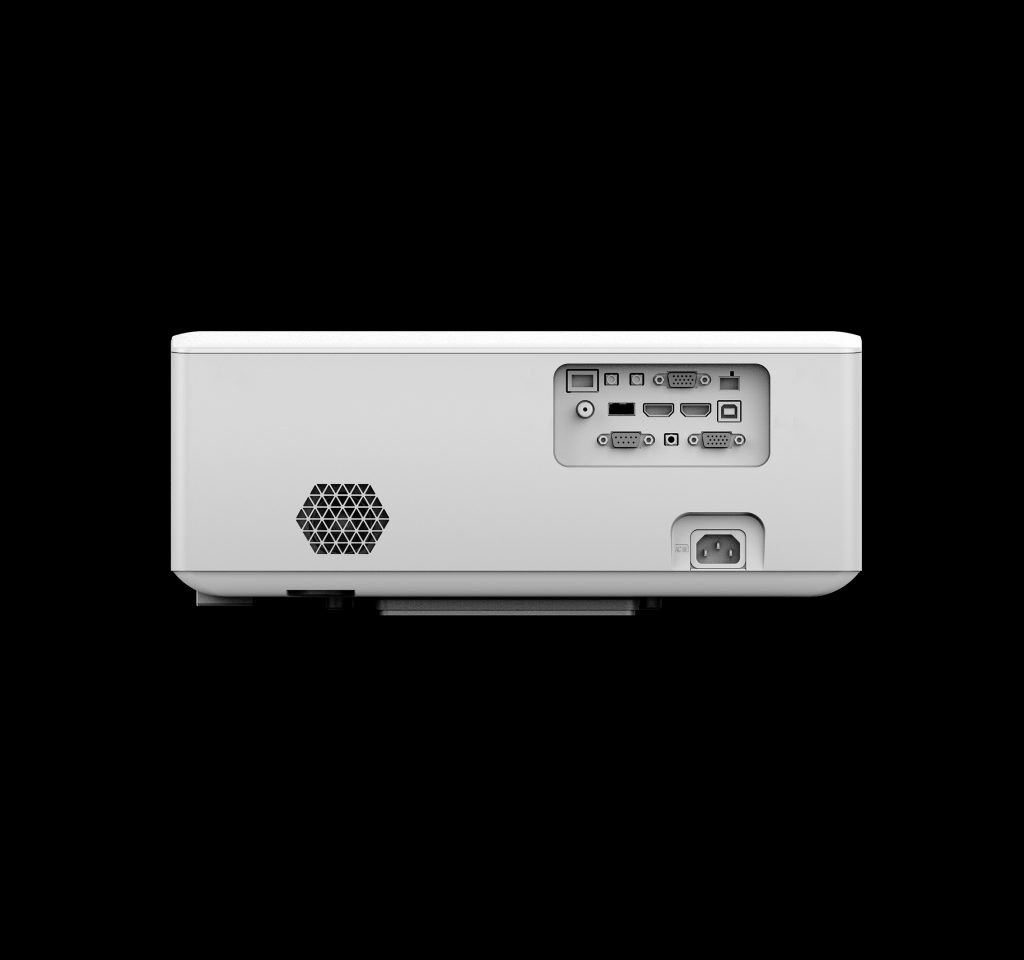

Ready for Integration

E5W36 offers full range of connection ports for integration in modern AV environments with leading control, monitoring and management systems at all difference levels.

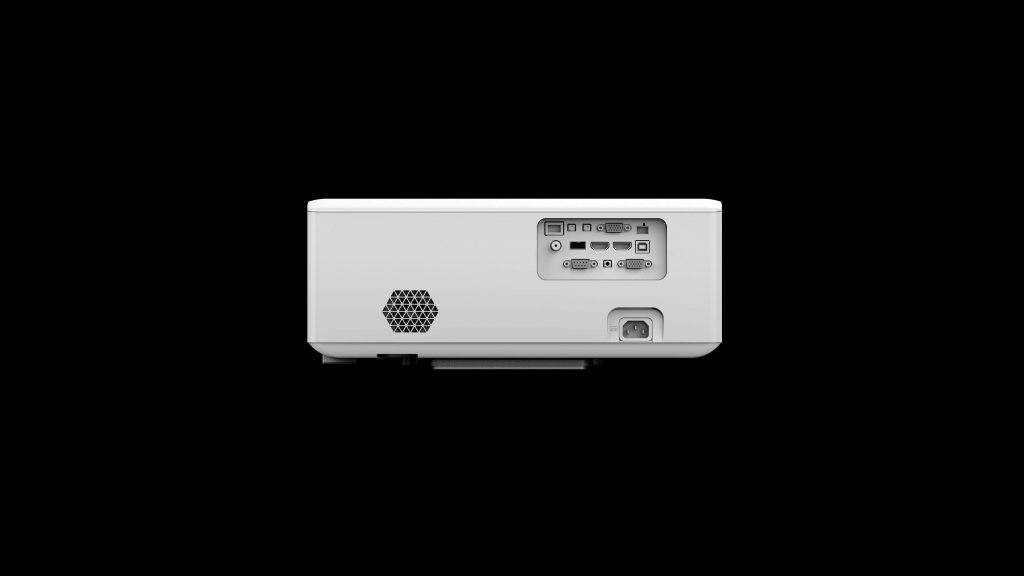

The following ports are avalible on E5W36: HDMI*2, USB 2.0*1, RJ45*1, VGA IN(Computer/D-sub)*2, AVInput*1,VGA Audio input*1, VGA OUT *1 (combine with VGA2 IN), Anolog audio output*1, digital audio*1, RS232*1 and factory service interface*1.

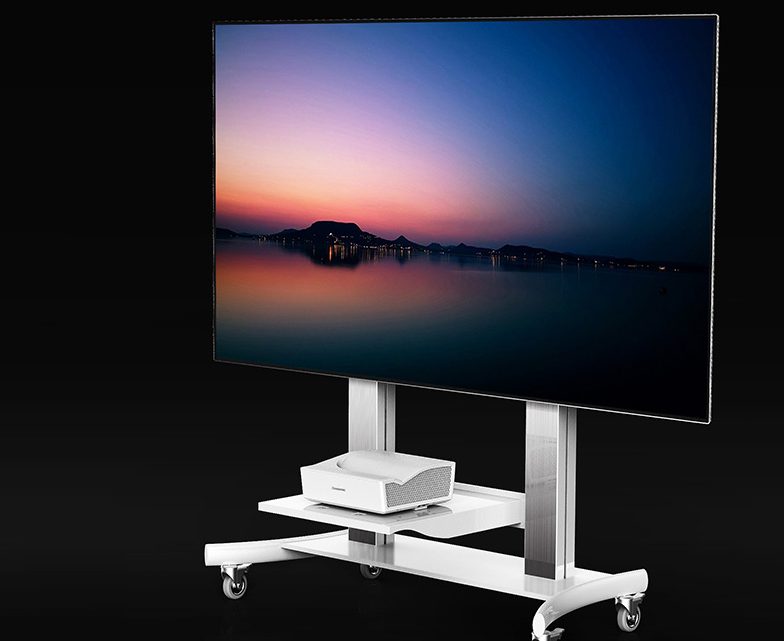

35000:1 Contrast Ratio

With the 35000:1 contrast ratio, E5W36 displays clear images where white is brighter and black is darker with rich details.

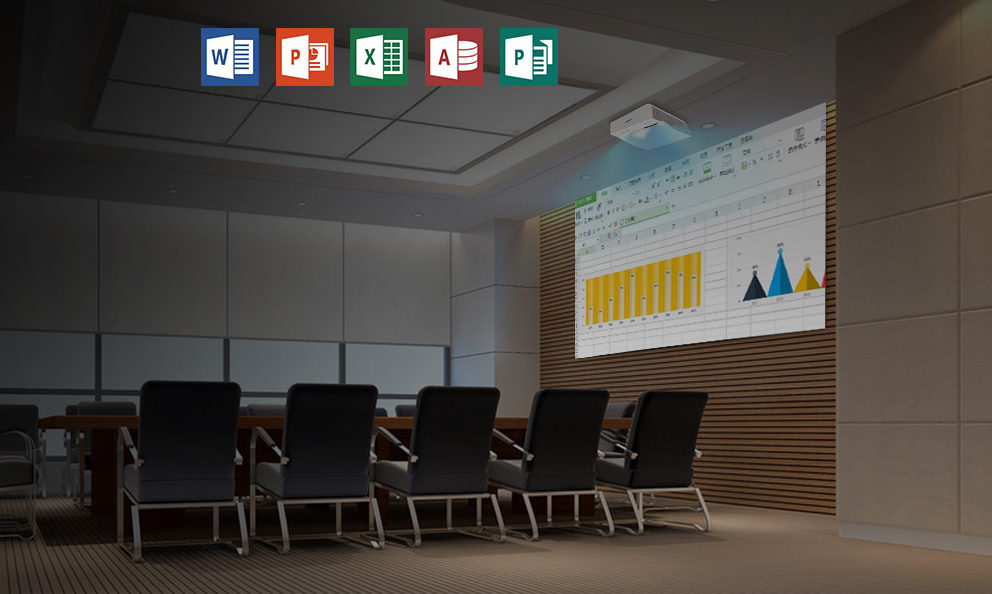

Built-in Media Player

With the built-in media player, media and document files stored on external USB storage can be played directly from E5W36 without the need for a PC which helps to make the life easier for meetings/presentations.

Specification

Optical Parameters Chipset DLP DMD, 0.65”
Resolution 1280x800WXGA
Aspect ratio 16:10 support 16:9 / 16:6 / 4:3 Display
Luminous Flux 3600lm
Contrast Ratio 350001
Projection Ratio TR0.233
Projection Model Internal Reflection
Display Size 80 inch-135 inch
Illumination Uniformity 90%
Light source technology New solid state laser source technology
Light source lifetime 2,5000 hoursNormal
Electric Parameters Rated Power 240W
Standby Power 0.5W
Noise 32dB
Power Voltage AC 110 to 240V, 50/60 Hz
System Parameters Operation System Android
Flash 4GB
Interface Parameters Input HDMIx2, USB 2.0x1, RJ45x1, VGA IN(computer/D-sub)x2, AV input x1, VGA audio inputx1
Output VGA OUT *1 (combine with VGA2 IN), Anolog audio output*1, digital audio*1
Contral port RS232x1, Debug portx1
Functional Parameters Build in Speaker 1X10W
Remote Control Infrared
Network Support RJ45 Cable network
Keystone correction Vertical ±40°
Focusing Function Electric Focusing
Dust-proof design Honeycomb Dust-proof Filtering Function
Other Function Media Share, Local Picture Browsing, Music and Video Playing, Super Video Decoding, Multi-Sound Mode
Package Size 485*485*350mm
Weight (including packing) 10.5Kg
Dimensions 381mm * 382mm *  147mm
Net weight 8Kg
Projection model Desktop front projection, desktop rear projection, hoisting front projection, hoisting rear projection
Working / storage environment Temperature 5~38~humidity 35%~85%
