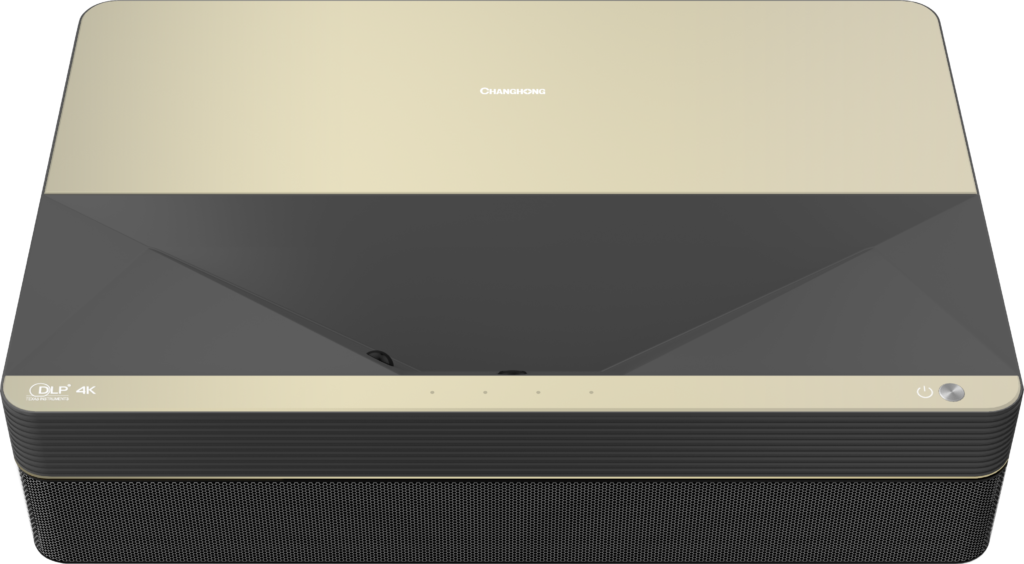

CHiQ B7U

Featuring 2,500 ANSI lumens brightness, autofocus, HDR support, MEMC, 3D support and a rich selection of connection options, B7U is an ideal UST projector for a modern home theatre.

With the ultra-short throw ratio at 0.21:1, projecting a 100” only requires a 190mm distance from the screen/wall, allowing maximum installation flexibility.

With the help of the AF camera, B7U is capable of adjusting the focus automatically, so a clear image is easier than ever before to obtain.

The wide colour gamut of 130% BT. 709 with high colour accuracy, plus the 4K UHD resolution guarantees a vivid and truthful colour.

The low input lag of 28ms gives gamers a smooth gaming experience without noticeable latency.

Order from CHiQ UK Distrubtor

0.21:1 Throw Ratio 190mm for 100"

With the 0.21:1 ultra-short throw ratio, a giant 100” projection only requires a distance of 190mm between the edge of the projector and the screen.

8 POINTS KEYSTONE

With up to 8 adjustment points, the keystone adjustment on B7U is easy and precise.

Discovering True Colour

1 Billion colours | HDR10

With the Changhong pure colour laser display technology. Millions of pixels are expertly controlled to restore the true colour of the real world.

You can expect a vivid image with high colour accuracy (Delta E ≦2)  right out of the box.

Smooth Picture

MEMC frame interpolation technology enhances the quality and smoothness of the video, games, sports events and other pictures more smooth and coherent with MEMC.

EYE HEALTH AND SAFETY

99% Blue Light Emission Free
Reflected Light
Larger Screen
Wide-Angle Eye Protection Sensor

Enjoy 3D Movies At Home

* DLP Link 3D Glasses Required

With the full 3D decoding support, you can experience a much more immersive image at your home.

To Be Connected

B7U supports all major AV connection options, including the HDMI eARC for high-speed data transmission and RS232 for system integration.

Specification






Projector Specifications


Projector Technical Specifications
Display Technology

DLP™ Premium
 Operating System

OS: Customised Android
OSD/display language:
  • Chinese
  • English
  • Thai
  • German
  • Russian
  • French
  • Portuguese
  • Spanish
  • Italian
Resolution:
4K UHD (3840×2160)
Wireless Screen Mirroring:
DLNA/Airplay
Brightness:
2,500 ANSI Lumens
 General
Contrast Ratio (FOFO):
1500:1
Noise level:
30dB
Colour gamut:
130% BT.709
Input lag:
28ms
Screen size:
80"-150" (120" recommended)
3D compatibility:
Frame-pack: 1080P
MEMC:
4K and 1080p compatible
GPU:
Mali-G52
Lamp Info
RAM+ROM:
3GB+64GB
Light source type:
Laser
CPU:
MT9652
Light source lifespan:
25,000 hours
Speaker:
2 × 10W
Optical
Conformity Certification:
CE
Throw ratio:
0.21:1
Power Supply:
110v-240v
Offset:
140%
Power Consumption:
225wh (Max)
Keystone correction:
8 points
 Dimensions and Weight
Projection Modes:
Front/Back/Ceiling Front/Ceiling Back
Dimensions:
325 × 151 × 485mm
Focus:
Auto focus + Electric focus
Weight:
9.7kg
Connectivity

Connections:
Input:
  • 1 × HDMI 2.0 with CEC
  • 1 × HDMI 2.0 with ARC and CEC
  • 2 × USB 2.0 (5V 1A)
  • 1 × RS-232
  • 1 × LAN
Output:
  • 1 × SPDIF
  • 1 × Coaxial
  • 1 × 3.5mm Jack
  • IEEE 802.11 a/b/g/n/ac 2.4+5Ghz
  • Bluetooth 5.1
 In the Box

  • Projector
  • AC power cord
  • Remote control
  • Basic user manual
Sound and Image Technologies

Image:
  • HDR
  • HLG
  • MEMC
Sound:
  • Dolby Digital 5.1
  • Integrated DSP for automatic sound optimization
